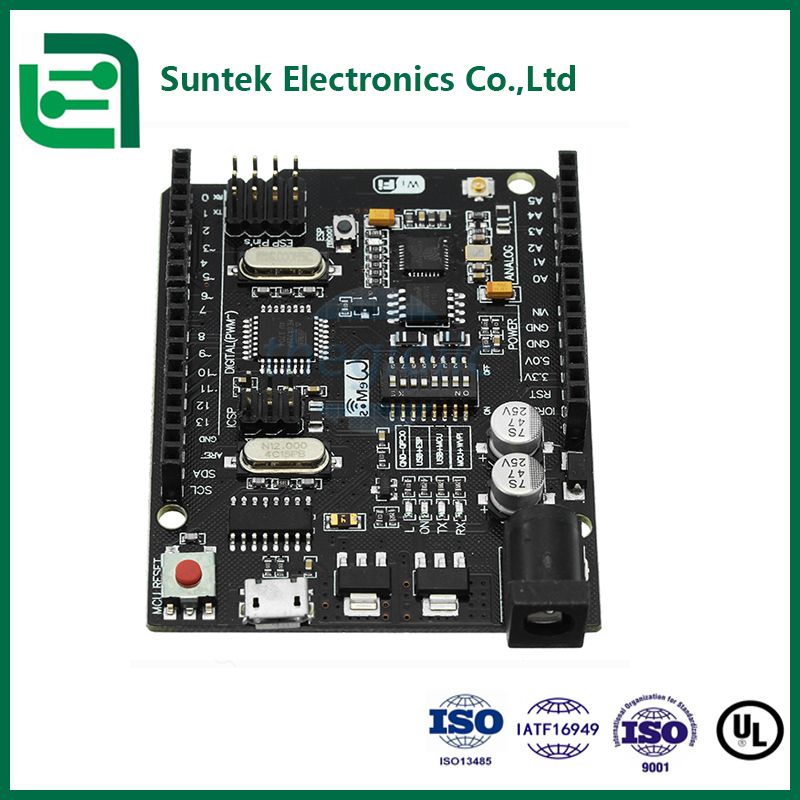

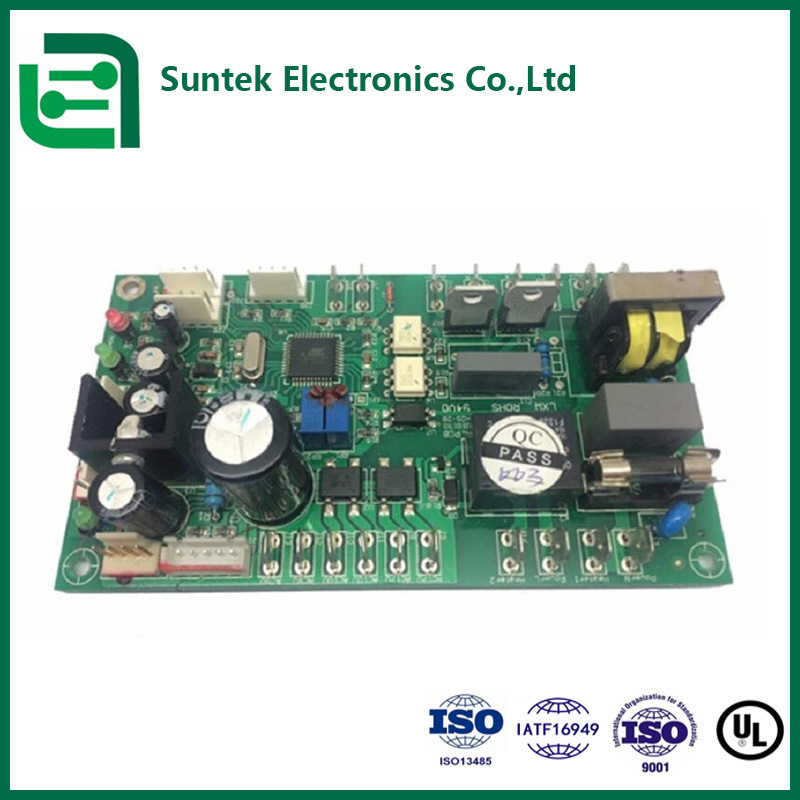

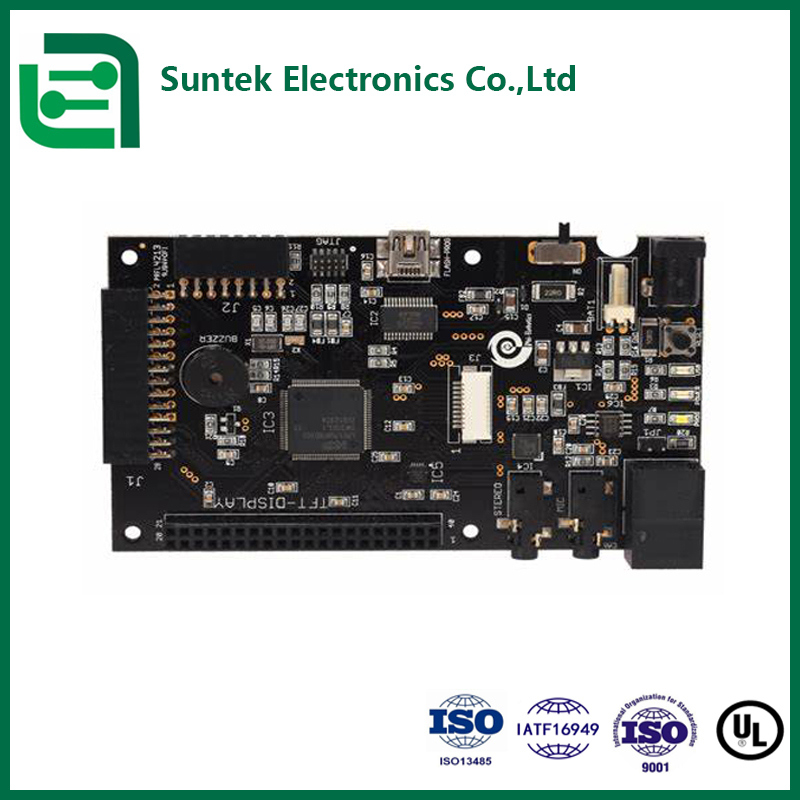

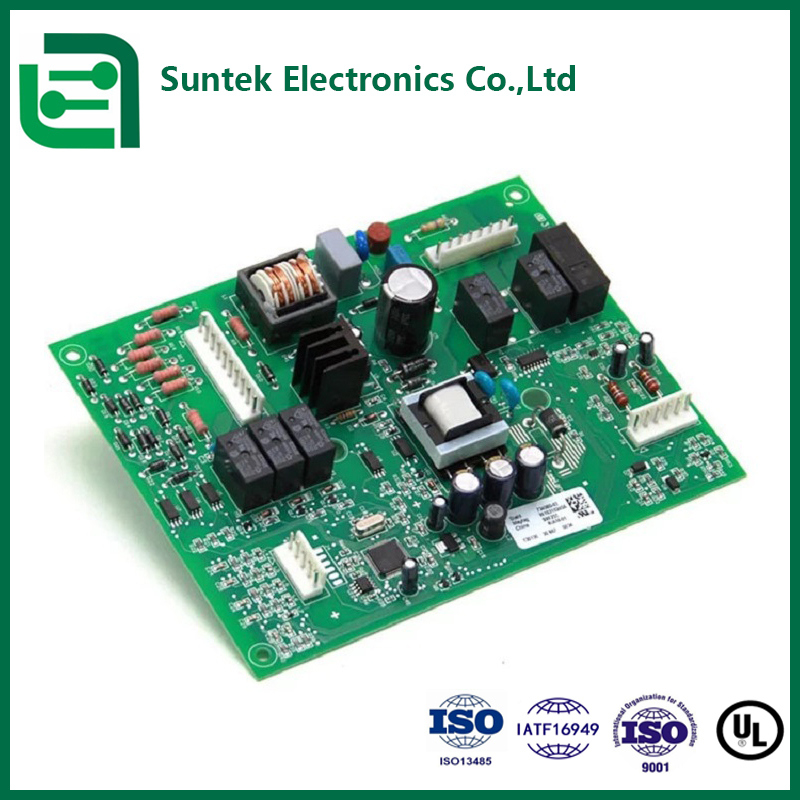

One Stop SMT PCB Assembly Manufacturing IPC-A-610 Standard 100% AOI RoHS Compliant
About Suntek Group:
Suntek is a contract supplier in EMS field with one-stop solution for FCB/FPC assembly,Cable assembly and Box-build assembly.
Suntek Electronics Co., Ltd,as the major facility, located in Hunan Prov,China;
BLSuntek Electronics Co., Ltd,as the new facility, located in Kandal Prov,Cambodia.
With ISO9001:2015,ISO13485:2016,IATF 16949:2016 and UL E476377 certified,We deliver qualified products with competitive price to clients all over the world.
With your Gerber file and BOM,we can make it into a real product.
With your physical sample,we can provide the reverse-engineering service to help you copy this product.
With your ideas,we can provide the joint-design service to help you build this product.
Capabilities overview:
|
Specifications
|
Details
|
|
Material type
|
FR-1, FR-4, CEM-1, aluminum clad
|
|
Material thickness ( mm)
|
0.4, 0.6, 0.8, 1.0, 1.2, 1.6, 2.0
|
|
Layer count
|
1 to 8 Layers
|
|
Max. Board size
|
23.00” x 35.00”(580mm*900mm)
|
|
IPC class
|
Class II, Class III , Class 1
|
|
Annular ring
|
5 mil/side or Greater (Min. Design)
|
|
Finish plating
|
Solder(HASL), Lead Free Solder(HASL), ENIG (Electroless nickel
immersion gold), OSP, immersion silver, immersion tin, immersion nickel,
hard gold, other
|
|
Copper weight
|
0.5OZ-2OZ
|
|
Trace/space width
|
3 Mils or greater
|
|
Drill clearance
|
0.1mm(laser drilling)
|
|
Plated slots
|
0.036 or greater
|
|
Smallest hole (finished)
|
0.1mm or greater
|
|
Gold fingers
|
1 to 4 Edge (30 to 50 Micron Gold)
|
|
SMD pitch
|
0.080” - 0.020” - 0.010”
|
|
Solder mask type
|
LPI Glossy, LPI-Matte, SR1000
|
|
Solder mask color
|
Green, red, blue, black, white, yellow
|
|
Legend color
|
White, yellow, black, red, blue
|
|
CNC route point
|
Any
|
|
Minimum route width
|
0.031”
|
|
Scoring
|
Straight lines, jump scoring, panel edge to edge, CNC*
|
|
Body gold
|
HARD*, IMMERSION* (up to 50 MICRON GOLD)
|
|
Data file format
|
Gerber 274x with embedder aperture
|
|
FAB. Drawing format
|
DXF, HPGL, DWG, PDF, Gerber
|
|
E.T testing
|
Flying probe, single sided, 1up plate, clamp shell, net list
|
|
Counter sink/counter bore
|
Available up to 0.250 Diameter
|
|
Control impedance
|
Yes
|
|
Blind vias/buried vias
|
Yes
|
|
Peelable mask
|
Yes
|
|
Carbon
|
Yes
|
Application:
Our company provide:
-PCB/FPC fabrication
-Components sourcing
-PCB/FPC assembly
-Custom cable/harness assembly
-Box build
Services as below:
-SMT, THT, BGA,0201 Chips assembly
-AOI, X-Ray, ICT, FT, Burn-in
-Conformal coating or gluing
-High-mix, small to medium volume
With certification by ISO9001, ISO13485, TS16949 and UL .
EMS Advantages:
1) Strict product liability, taking IPC-A-610 standard
2) All teams can speak fluent English
3) PDCA management tool
4) 100% E-test,100% visual inspection, including IQC, IPQC, FQC, OQC
5) 100% AOI inspection, including X-ray, 3D microscope and ICT
6) High-voltage test,impedance control test
7) ISO9001,ISO13485,IATF16949 and UL certified
8) No minimum order quantity
9) Focus on low to medium volume production
10) Quick and on-time delivery
Why Choose Suntek?
As an experienced and reliable manufacturer,Suntek provides one stop service, including PCB manufacturing and PCB assembly for all customers in the global who has diversity requirements in their projects with our strong teams. It can help customers to save their time and money to complete their products with the highest quality but favorable price in only one place.
Instant Quote
You will get our instant quote within 24 hours to 48 hours and positive feedback for all your specifications about your projects.
Strong Team
Our professional and experienced experts and engineers will give you the technical support from PCB design to the turnkey PCB assembly all the times. all questions can be answered in the whole process without time delay.
Automatic Equipment
All advanced automatic equipment helps us to improve working efficiency and cost efficiency. we will do everything possible to offer you the boards with the highest quality but competitive price on time.
After Sales Service
We will track all orders for all customers throughout. our customer service representatives will be online available to give you the instant update in every process.
Our supports:
We ensure cost transparency, BOM cost breakdown sharing;
We have components suppliers from the Global.
We have a written process to advise customers of any schdule delays or product quality problems,by:
(1)Customer service procedure
(2)RMA procedure
(3)8D reports
(4)PDCA(Plan-Do-Check-Action) in customer service
We respond to the complaints,issues and queries in 24 hours, by:
(1) Weekly reports
(2) Customer supporting team to review communication times
(3) Customer satisfaction questionnaire
Aftersales services:
(1) 1-year guarantee period for all of products
(2) FOC repair
(3) Quick compensation parts to replace defectives.
EMS PCB Quality Control:
PCBA Assemly Flow Chart:
FAQ:
Q1: What files do you use in PCB fabrication?
A1: Gerber, PCB. Auto CAD
Q2: How do you make sure the quality?
A2: Our Product is all 100% E-tested .PCB Assembly are with 100% AOI,ICT,FT and Visual checking,100% X-ray for BGA.
Q3: Can we visit your company?
A3: Of course,Welcome to visit our company, Suntek located in Xingsha Industrial Park, Changsha,Hunan province, China.
Q4: What is the lead time?
A4: It takes 3-5 working days for sample, 7-10 working days for batch production based on files and quantity. It takes 15-20 working days for PCB assembly.
Q5: Will you keep our information and files secret?
A5: Sure,It is our basic principle to keep business secrets to protect our customers' designs.NDA can be signed at any time.
Q6. How to work with you?
A6: -Email and send us the PCB layout file, BOM list
- We will provide reply confirmation within 12 hours and reply to the offer within 3-5 days.
- Waiting for your company to confirm the price, order and payment terms.
- We will proceed the order.
We have advanced manufacturing equipments and technology,professional engineer team,purchasing team,quality team and management team to guarantee
the high quality products and on time delivery.Our products are widely used in industrial control,auto,telecommunications,medical equipment,consumer electronics and etc.
Some Factory Pictures:
